Clear-Gel Beverage Systems: Balancing Viscosity and Clarity

In the 2026 global landscape, clear functional beverage stabilization is one of the most demanding technical challenges in liquid formulation. Demand is rising for transparent wellness waters, isotonic drinks and botanical tonics, yet insoluble minerals and vitamins must stay suspended without cloudiness or a gummy mouthfeel. Highly refined, low-viscosity Guar Gum delivers Superior suspension kinetics and clean flavor release while preserving visual clarity across shelf-stable bottled beverages.

Research Overview

Market intelligence published by IMARC indicates that functional hydration beverages, fortified waters and ready-to-drink botanical tonics are among the fastest-growing sub-sectors of non-alcoholic refreshment. Fortification with insoluble calcium, zinc, iron and botanicals creates sedimentation risk, while standard gums scatter light. Studies in Carbohydrate Polymers and J. Food Sci. show that purified, clarified galactomannan grades resolve both problems, and Guar Gum is regulated as E412 / INS 412 under FAO, USDA, EFSA and CODEX frameworks.

Optical Physics: Light Scattering, Turbidity and Clarity

Achieving clarity requires control over light transmittance, refractive index and the removal of light-scattering debris. Natural Guar Gum from Cyamopsis tetragonoloba is a galactomannan with a beta-(1-4)-D-mannose backbone and alpha-(1-6)-D-galactose branches at roughly a 2:1 ratio. When purified, it dissolves into an optically continuous solution.

• Light scattering: particulates approaching visible wavelengths (380 to 750 nm) scatter photons. In standard commercial Guar Gum, insoluble seed husk, cellulose and residual protein (typically 3% to 5%) produce a milky haze.
• Multi-stage filtration: aqueous extraction, high-speed centrifugation and micro-filtration lower insoluble residue below 0.5% and reduce turbidity in a 1% solution from over 100 NTU to under 15 NTU.
• Refractive index matching: dissolved galactomannan chains align closely with the aqueous phase, allowing light transmittance above 90% at 600 nm in clear glass and PET.
• Enzymatic standardization: endo-beta-mannanase hydrolysis yields low-viscosity fragments of roughly 20,000 to 100,000 Daltons that disperse without forming refractive macro-clusters.

Transparent functional beverages require clarified, low-turbidity Guar Gum.

Rheological Mechanics: Balancing Yield Stress and Drinkability

Suspension in low-viscosity beverages is governed by Stokes Law, which links settling velocity to fluid viscosity, particle diameter and density difference. Because settling velocity is inversely proportional to continuous-phase viscosity, even a modest rise in viscosity slows sedimentation dramatically. Pseudoplastic flow then restores a clean swallow.

• Overcoming gravitational settling: in plain water (about 1 cP at 20 C), dense particles such as calcium phosphate (specific gravity near 3.1) settle within minutes. Low-viscosity Guar Gum raises micro-viscosity to roughly 10 to 50 cP, slowing particle migration without a heavy body.
• Weak fluid yield stress: a subtle entangled polymer network provides enough zero-shear yield stress to hold micronized mineral and vitamin particles in place.
• Shear-thinning mouthfeel: at oral shear rates of 100 to 1,000 reciprocal seconds, chains uncoil and align, and apparent viscosity falls to water-like levels with no lingering film.
• Flavor release: neutral sensory character and rapid shear-thinning allow unhindered release of citrus, berry and botanical flavors.

Weak yield stress holds micronized minerals in suspension without a gummy mouthfeel.

Formulation Synergy, Acid Stability and Mineral Suspension

Modern functional beverages combine organic acids, electrolytes, botanical extracts and bioactive minerals that interact directly with the hydrocolloid matrix. Explore the full Guar Gum product range and the grade comparison tool to match a grade to each system.

• Micronized insoluble minerals: calcium carbonate, tricalcium phosphate, ferric pyrophosphate and zinc oxide avoid the metallic notes of soluble salts. Clarified Guar Gum at 0.15% to 0.45% (w/w) maintains uniform distribution of sub-10-micron particles across a 12-month ambient shelf life.
• Low-pH stability: at pH 3.0 to 4.5, the non-ionic galactomannan backbone resists charge-induced precipitation and stays clear through HTST and UHT pasteurization.
• Synergy with gellan and pectin: industry studies indicate that pairing clarified Guar Gum with low-acyl gellan or high-ester citrus pectin is beneficial. Gellan forms a crystal-clear fluid gel while Guar Gum acts as a polymeric spacer that limits syneresis and improves stability under transit vibration.
• Nanoemulsions: highly refined Guar Gum adsorbs at the oil-water interface of vitamin A, D3, E, K2 and CoQ10 nanoemulsions, sterically limiting coalescence, Ostwald ripening and oil ringing without reducing transparency.

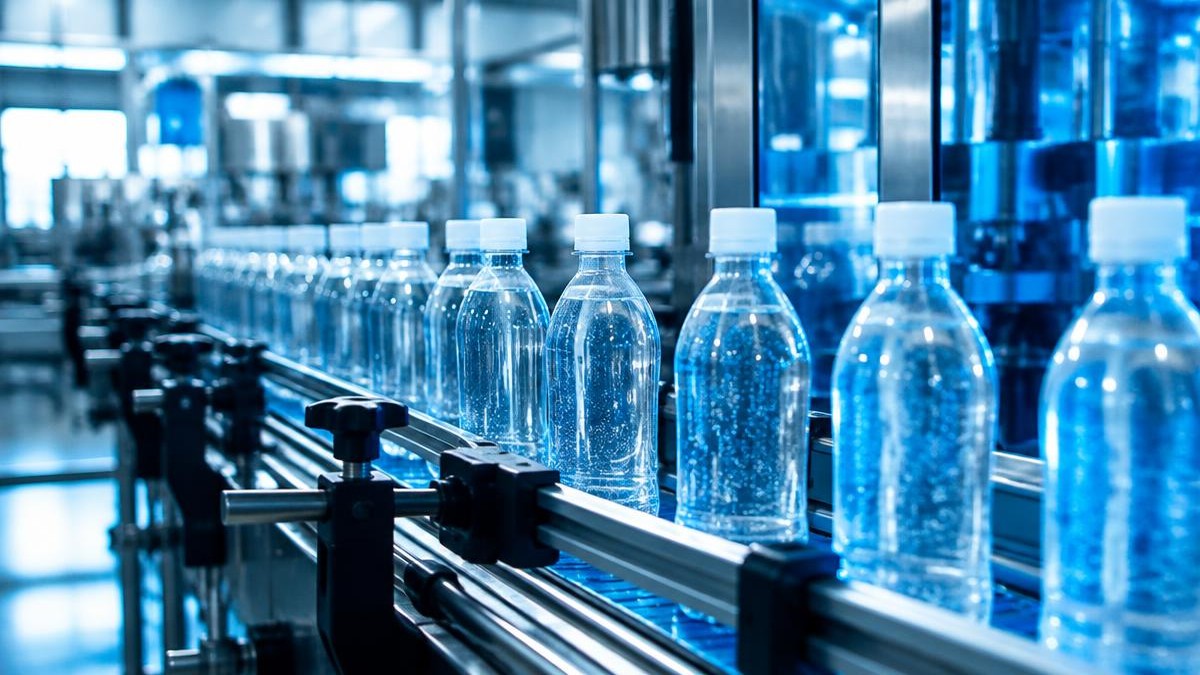

Commercial Processing, Hydration and Quality Assurance

Integrating clarified Guar Gum into bottling lines requires controlled dispersion to prevent air entrapment and ensure uniform dissolution. The Guar Gum glossary explains related terms, and the quality page details testing standards.

• Cold-fill and hot-fill compatibility: clarified low-viscosity Guar Gum dissolves in water from 15 C to 85 C without boiling, suiting both aseptic cold-fill and hot-fill tunnel pasteurization.
• High-shear induction and deaeration: meter powder slowly into a high-shear vacuum disperser or in-line eductor, then pass the batch through a vacuum deaerator before pasteurization, because micro-bubbles mimic cloudiness.
• Compatibility with finings: cross-flow membrane filtration or silica sol treatment can capture residual trace haze before packaging.
• Procurement parameters: source from ISO 9001:2015 and FSSC 22000 certified facilities and specify 1% transmittance above 85% to 90% at 600 nm, turbidity below 15 to 20 NTU, moisture below 10%, total ash below 1.0% and 200 mesh passing above 98%.

Key Takeaways

• Superior optical transparency: clarified, low-viscosity Guar Gum removes seed husk and protein debris, delivering transmittance above 90% with turbidity below 15 NTU.
• Permanent particulate suspension: targeted micro-viscosity and weak yield stress prevent settling of calcium, zinc, iron and botanicals over 12 months.
• Crisp, water-like mouthfeel: pseudoplastic rheology removes gummy slime and maximizes flavor perception.
• Broad acid and thermal stability: the non-ionic backbone is stable at pH 3.0 to 4.5 and through UHT and HTST processing.
• Clean-label E412 compliance: a plant-derived, non-GMO, allergen-free stabilizer that replaces synthetic suspending agents under USDA, EFSA and CODEX guidelines.

Frequently Asked Questions

Why does standard Guar Gum make beverages cloudy, and how does clarified Guar Gum solve this?

Standard Guar Gum contains insoluble seed husk, cellular fiber and residual protein (3% to 5%) that scatter light and create haze. Clarified grades undergo aqueous extraction, centrifugation and micro-filtration, removing these particulates and yielding a transparent solution with turbidity below 15 NTU.

How does low-viscosity Guar Gum suspend minerals without making the drink thick?

It forms an entangled polymer network with weak zero-shear yield stress that counteracts gravitational settling. Because it is low in molecular weight and shear-thinning, apparent viscosity falls to water-like levels while drinking, giving suspension without a gummy mouthfeel.

Can clarified Guar Gum withstand pasteurization in acidic RTD beverages?

Yes. As a non-ionic polysaccharide, Guar Gum resists low pH conditions (pH 3.0 to 4.5) and keeps its structure and clarity through hot-fill and UHT processing without precipitating or degrading.

What dosage is recommended in clear beverages?

Typical levels are 0.10% to 0.45% by weight (1.0 to 4.5 g per liter), depending on the density and particle size of the actives. Lightly fortified waters often use 0.10% to 0.20%, while heavier mineral suspensions use 0.25% to 0.40%.

To formulate crystal-clear functional beverages and secure a reliable supply of Superior, highly clarified low-viscosity Guar Gum, partner with B.D. Guar Pvt. Ltd. Contact the technical beverage team at sales@bdguar.com to request technical data sheets, turbidity testing protocols and sample kits.
